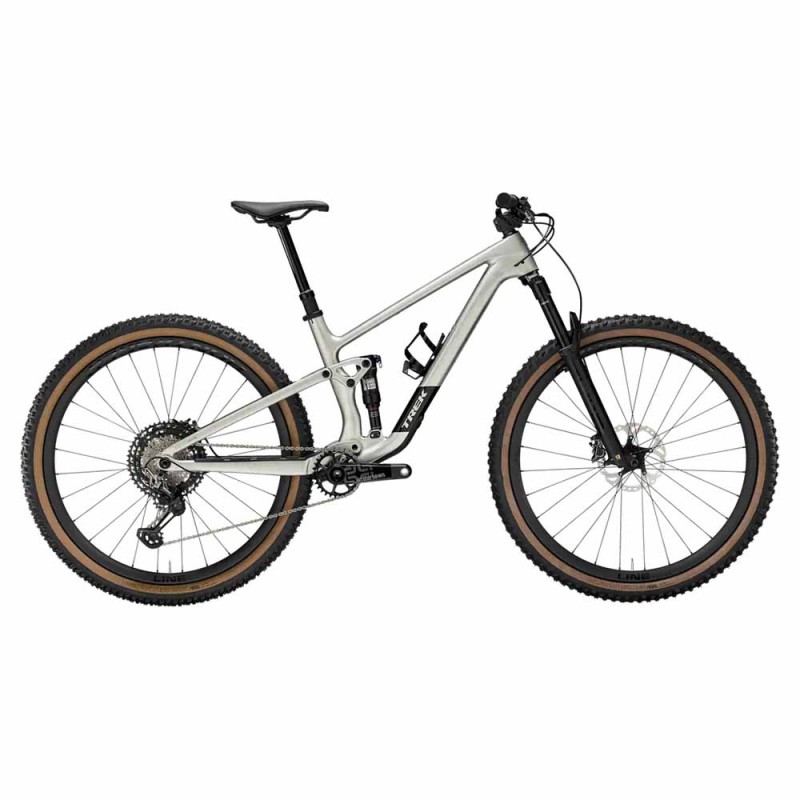

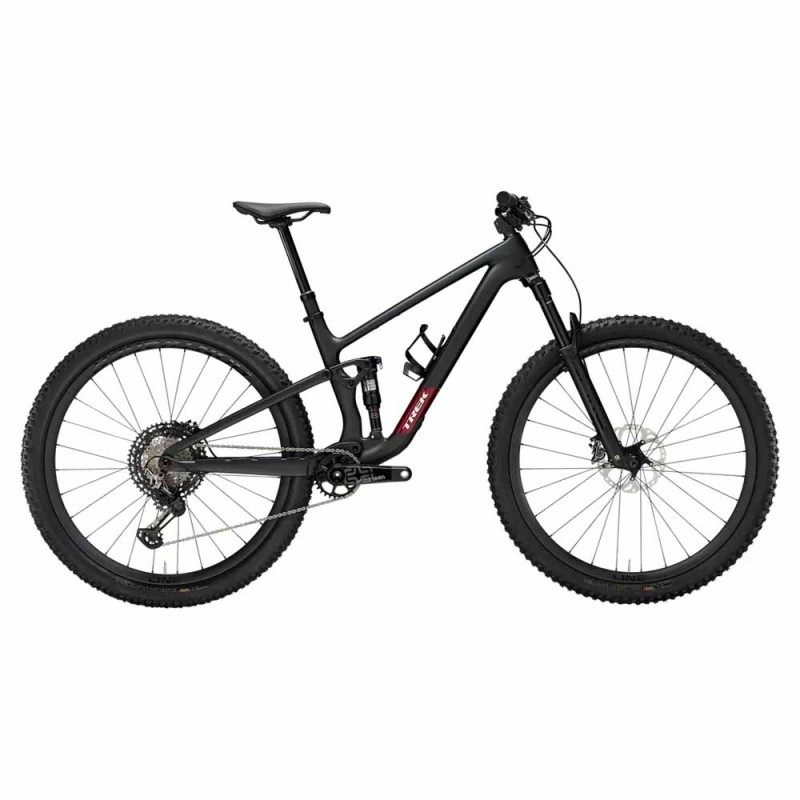

2025 Trek Top Fuel 9.9 XTR Gen 4 Mountain Bike
4,300.00 USD 7,700.00 USD
- Brand: Trek
- Product Code: CC256051
- Availability: In Stock
Available Options
2025 TREK TOP FUEL 9.9 XTR GEN 4 SPECIFICATION
| Frame | OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.5" Colors: Matte Dark Web; Axinite Flip; Lunar Silver |
|---|---|
| Fork | RockShox Pike Ultimate, DebonAir spring, Charger 3.1 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 130mm travel Travel: 130mm Spring Type: Air |
| Shock | RockShox Deluxe Ultimate RCT, 185mm x 50mm Travel: 120mm |
| Bottom Bracket | E*thirteen BB20-P, BSA threaded, 73mm width |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Seatpost | Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length; Size: M, ML, L, XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Type: Dropper |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Rear Derailleur | Shimano XTR M9100, Shadow Plus, long cage, 51T max cog |
| Crank | E*thirteen TRS Race Carbon, 30T, 55mm chainline, 170mm length |
| Shifters | Shimano XTR M9100, 12 speed |
| Cassette | Shimano XTR M9101, 10-51, 12 speed |
| Chain | Shimano Dura-Ace/XTR M9100, 12 speed |
| Brakes | Shimano XTR M9100 hydraulic disc Type: Shimano XTR Hydraulic Disc |
| Rims | Front: Size: S, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''; Size: M, ML, L, XL, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'', Rear: Size: S, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5''; Size: M, ML, L, XL, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29'' |
| Tires | Size: S, Bontrager Gunnison RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40''; Size: M, ML, L, XL, Bontrager Montrose RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 29x2.40''; Size: M, ML, L, XL, Bontrager Gunnison RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 29x2.40'' |
| Disc Rotors | Shimano RT86, 6-bolt, 180mm |
