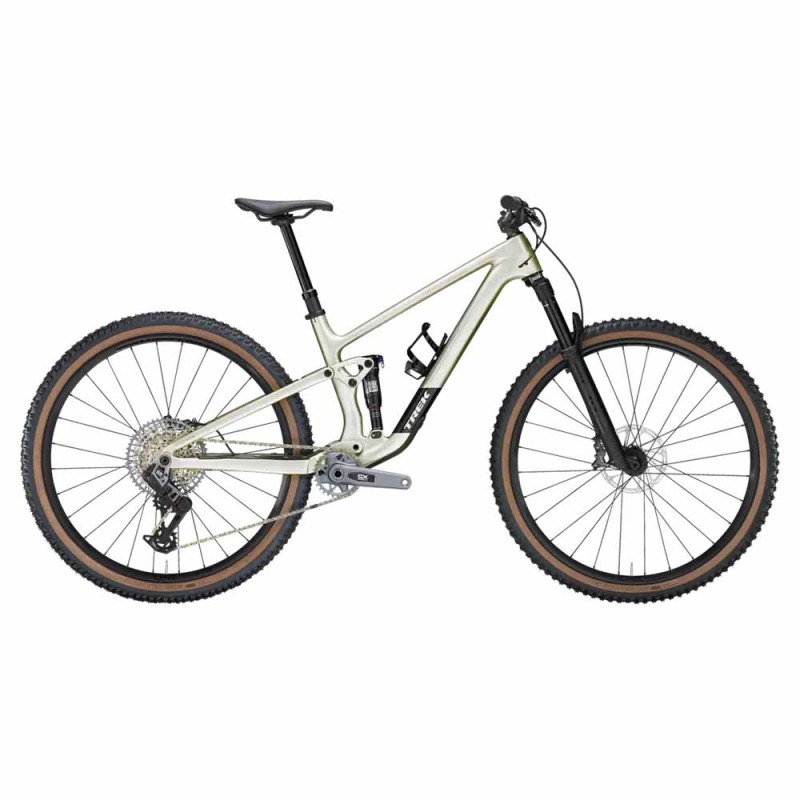

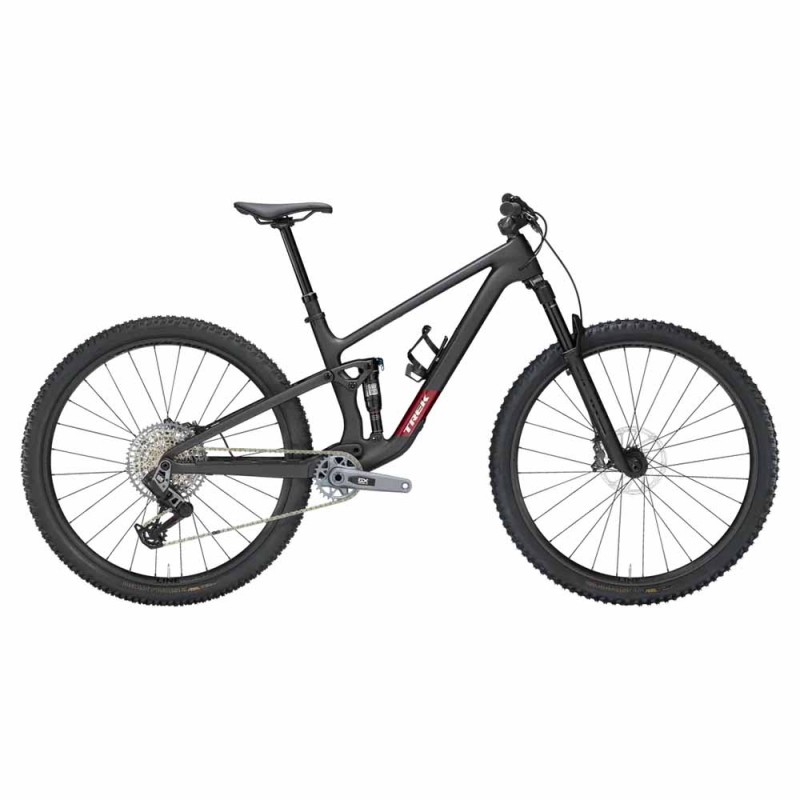

2025 Trek Top Fuel 9.8 GX AXS Gen 4 Mountain Bike
4,300.00 USD 7,700.00 USD
- Brand: Trek
- Product Code: CC256048
- Availability: In Stock
Available Options
2025 TREK TOP FUEL 9.8 GX AXS GEN 4 SPECIFICATION
| Frame |
OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.5" Colors: Matte Dark Web; Lunar Silver |
|---|---|
| Fork |
RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 130mm travel Travel: 130mm Spring Type: Air |
| Shock |
RockShox Deluxe Ultimate RCT, 185mm x 50mm Travel: 120mm |
| Bottom Bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Seatpost |
Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length; Size: M, ML, L, XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Type: Dropper |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Rear Derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length |
| Shifters | SRAM AXS POD |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12 speed |
| Chain | SRAM GX Eagle, T-Type, 12 speed |
| Brakes |
SRAM Level Bronze 4-piston hydraulic disc Type: SRAM Level Hydraulic Disc |
| Rims |
Front: Size: S, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''; Size: M, ML, L, XL, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'', Rear: Size: S, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''; Size: M, ML, L, XL, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29'' |
| Spokes | 14 g stainless steel, black |
| Tires |
Size: S, Bontrager Gunnison RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40''; Size: M, ML, L, XL, Bontrager Montrose RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 29x2.40''; Size: M, ML, L, XL, Bontrager Gunnison RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 29x2.40'' |
| Disc Rotors | SRAM CenterLine, 6-bolt, round edge, 180mm |
