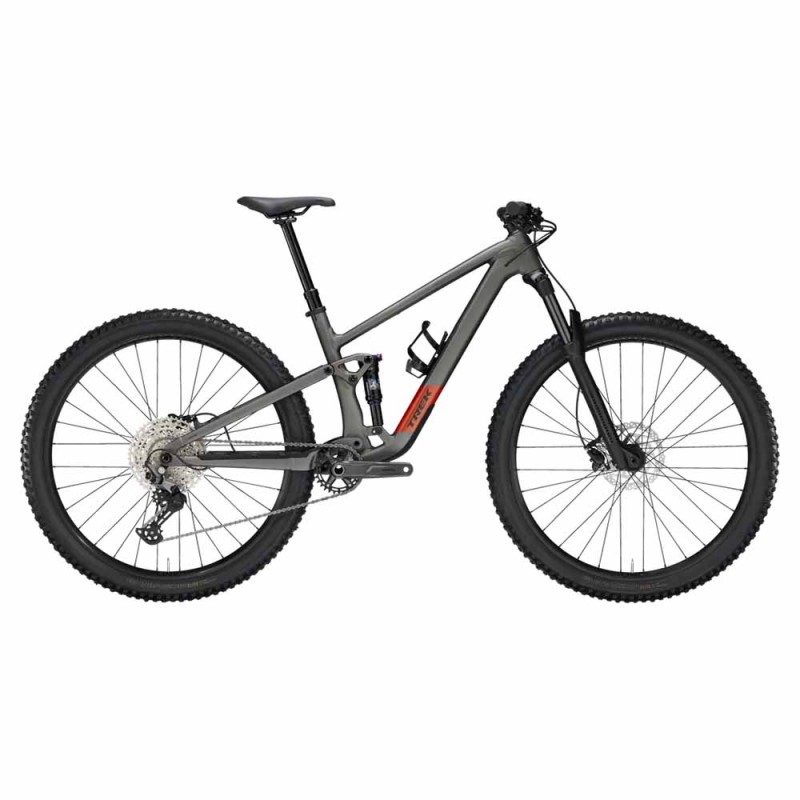

2025 Trek Top Fuel 5 Gen 4 Mountain Bike
1,600.00 USD 2,900.00 USD
- Brand: Trek
- Product Code: CC256044
- Availability: In Stock
Available Options
2025 TREK TOP FUEL 5 GEN 4 SPECIFICATION
| Frame | Alpha Platinum Aluminum, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.5" Colors: Matte Mercury; Crimson |
|---|---|
| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 130mm travel Travel: 130mm Spring Type: Air |
| Shock | X-Fusion Pro 2, 2-position damper, 185mm x 50mm Travel: 120mm |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | Size: S, TranzX JD-YSI22, 100mm travel, internal routing, 34.9mm, 342mm length; Size: M, ML, L, XL, TranzX JD-YSI22, 170mm travel, internal routing, 34.9mm, 489mm length Type: Dropper |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Rear Derailleur | Shimano Deore M6100, long cage |
| Crank | Shimano MT512, 30T ring, 55mm chainline, 170mm length |
| Shifters | Shimano Deore M6100, 12 speed |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Brakes | Shimano MT200 hydraulic disc Type: Shimano Hydraulic Disc |
| Rims | Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve |
| Front Hub | Bontrager alloy, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Tires | Size: S, Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''; Size: M, ML, L, XL, Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40'' |
| Disc Rotors | Shimano RT26, 6-bolt, 180mm |
