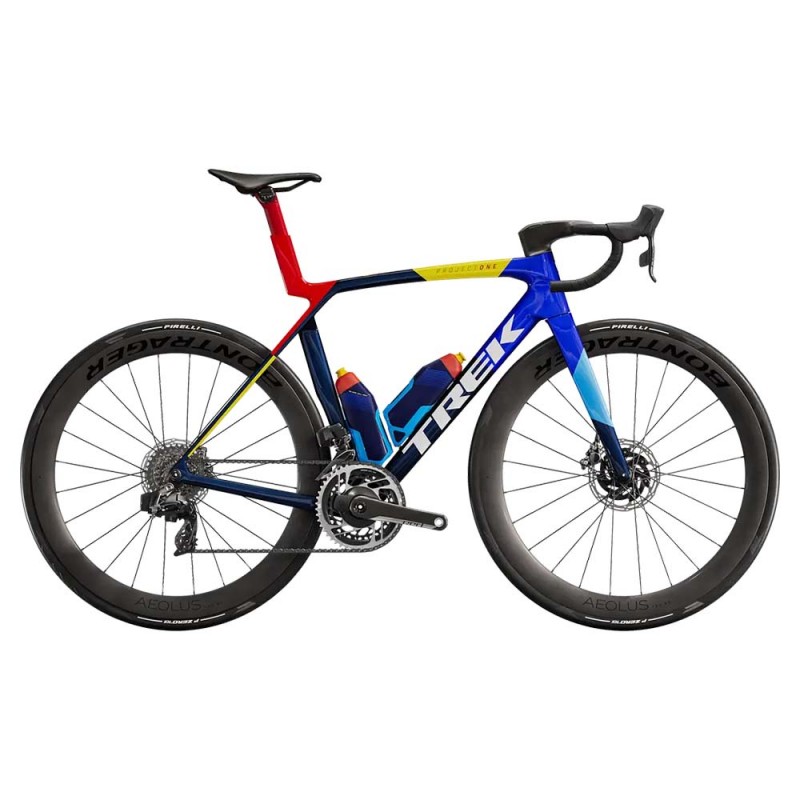

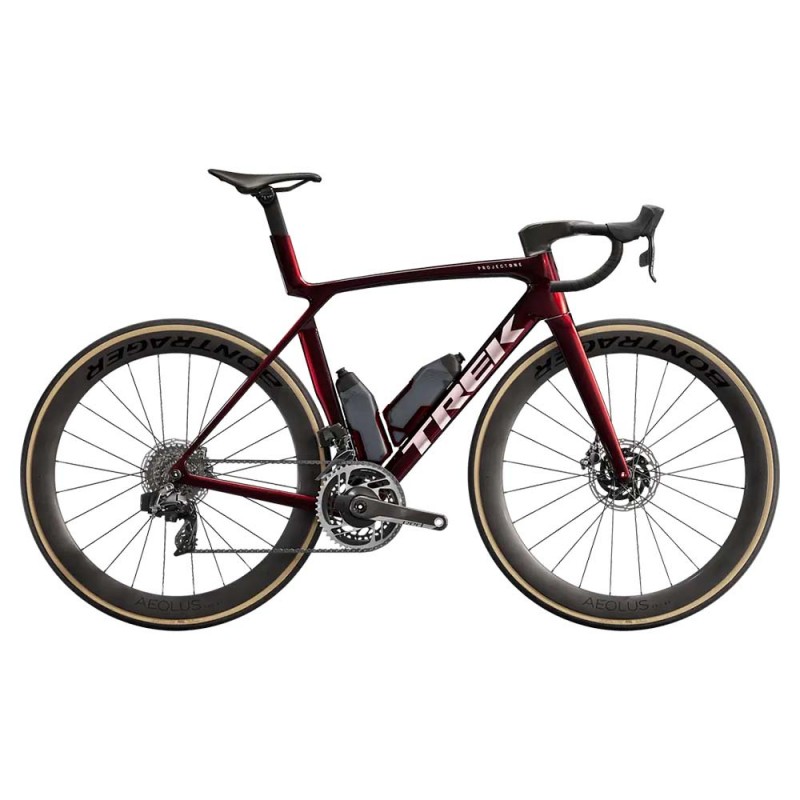

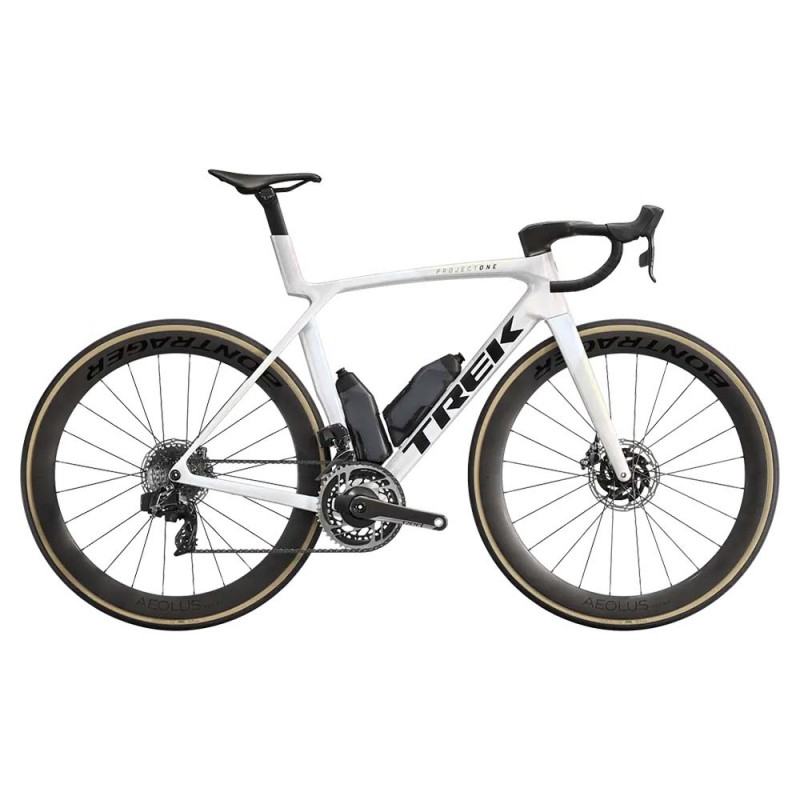

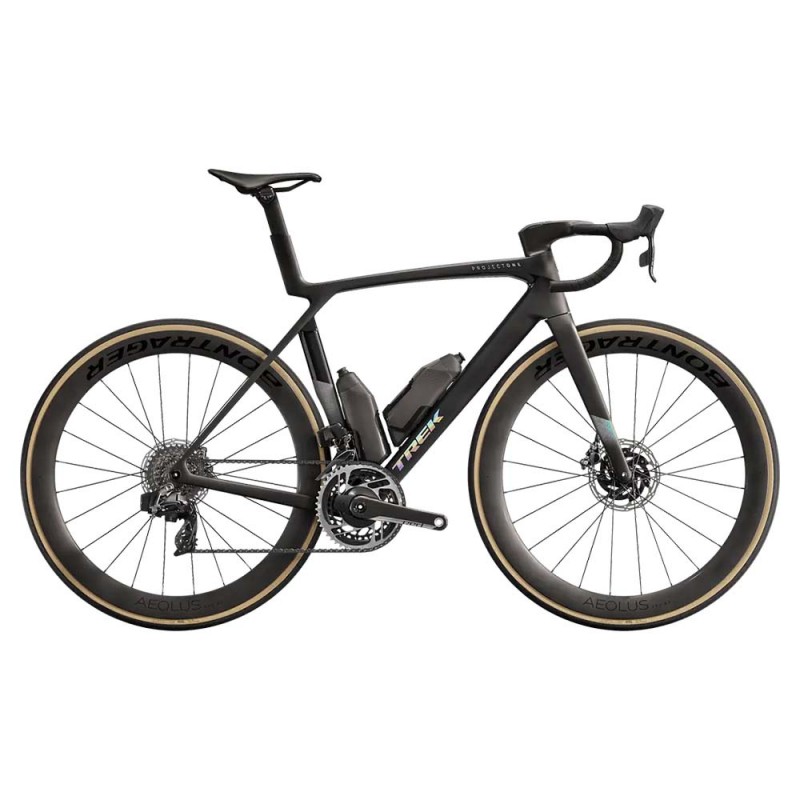

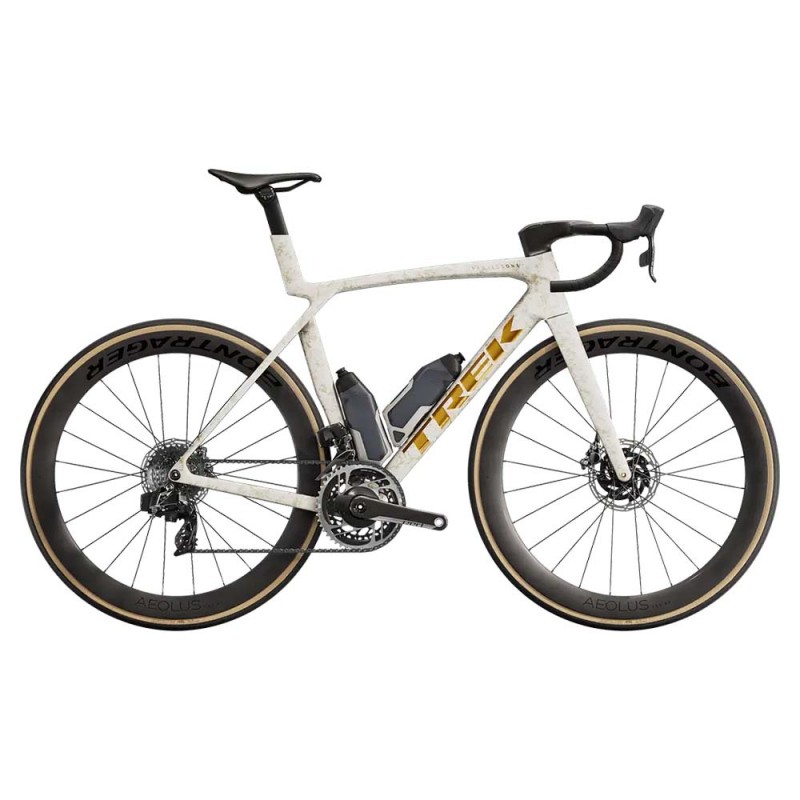

2025 Trek Madone SLR 8 AXS Gen 8 Road Bike
5,300.00 USD 9,500.00 USD
- Brand: Trek
- Product Code: CC256027
- Availability: In Stock
Available Options
2025 TREK MADONE SLR 8 AXS GEN 8 SPECIFICATION
| Frame | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle BB Standard: T47, Threaded Hanger Standard: UDH Tire Clearance: 32c |
|---|---|
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Saddle | Size: XS, S, Bontrager Aeolus P2 Pro, carbon rails, 155mm width; Size: M, ML, L, XL, Bontrager Aeolus Pro, carbon rails, 145mm width |
| Seatpost | Size: XS, S, M, XL, Madone aero carbon seatpost, 0mm offset, short length; Size: ML, L, Madone aero carbon seatpost, 0mm offset, long length Type: Rigid |
| Rear Derailleur | SRAM RED eTap AXS, 36T max cog |
| Front Derailleur | SRAM RED eTap AXS, braze-on |
| Crank | Size: XS, S, SRAM RED AXS w/ power meter, 48/35, DUB, 165mm length; Size: M, SRAM RED AXS, power meter, 48/35, DUB, 170mm length; Size: ML, L, SRAM RED AXS, power meter, 48/35, DUB, 172.5mm length; Size: XL, SRAM RED AXS, power meter, 48/35, DUB, 175mm length |
| Power Meter | Size: XS, S, SRAM RED AXS w/ power meter, 48/35, DUB, 165mm length; Size: M, SRAM RED AXS, power meter, 48/35, DUB, 170mm length; Size: ML, L, SRAM RED AXS, power meter, 48/35, DUB, 172.5mm length; Size: XL, SRAM RED AXS, power meter, 48/35, DUB, 175mm length |
| Shifters | SRAM RED eTap AXS, 12 speed |
| Cassette | SRAM XG-1290, 10-33, 12 speed |
| Chain | SRAM RED D1, 12 speed |
| Brakes | SRAM CenterLine X, centerlock, round edge, 160mm Type: SRAM Hydraulic Disc |
| Rims | Front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle |
| Tires | Size: XS, S, M, ML, L, XL, Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm; Size: XS, S, M, ML, L, XL, Pirelli P Zero Race, 120 tpi, tubeless compatible, 700x28mm |
| Disc Rotors | SRAM CenterLine X, centerlock, round edge, 160mm |
