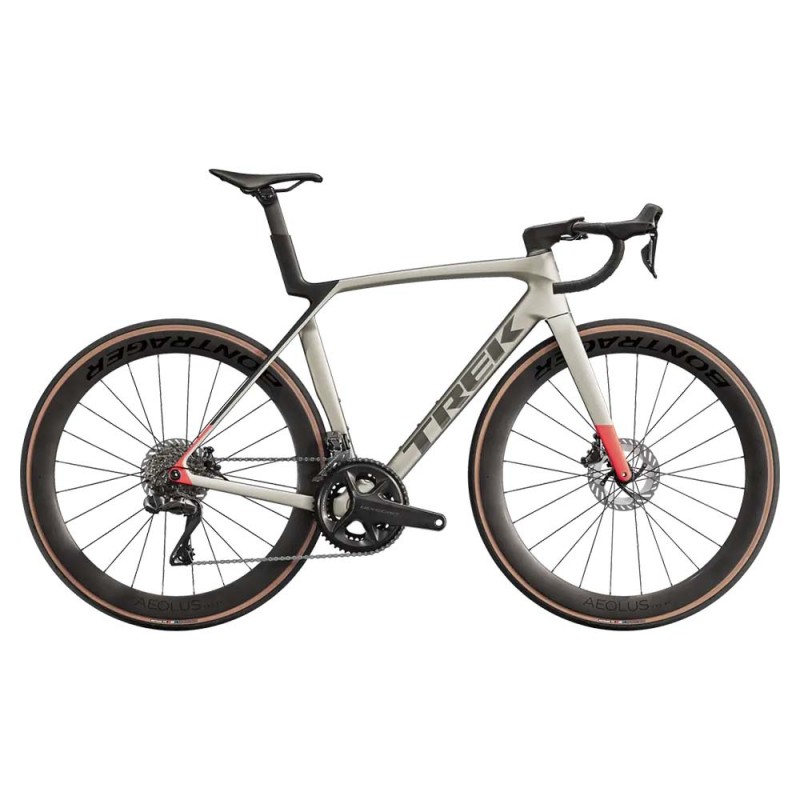

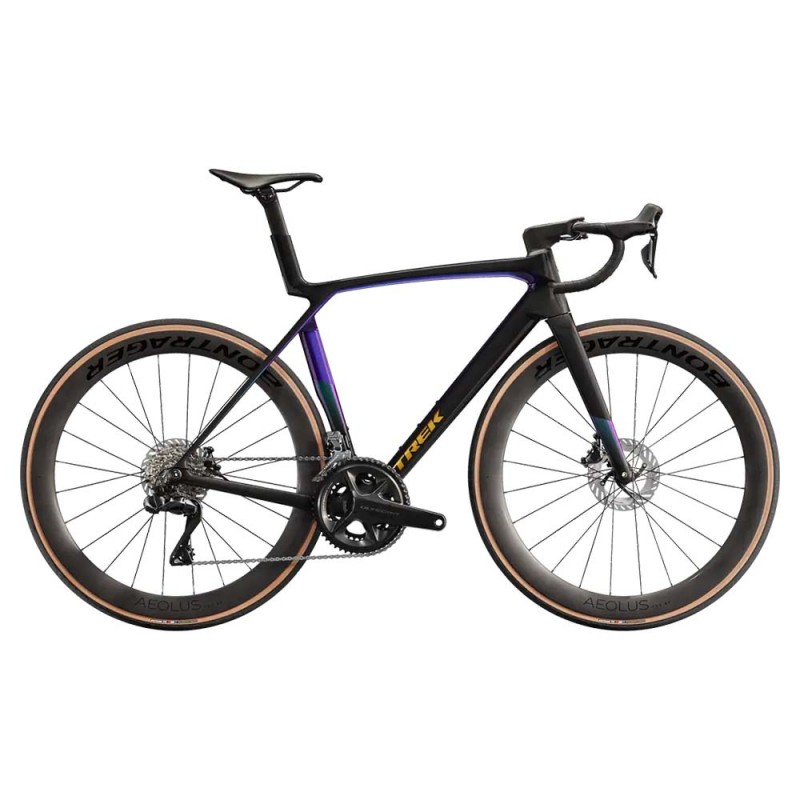

2025 Trek Madone SL 7 Gen 8 Road Bike
4,000.00 USD 7,200.00 USD
- Brand: Trek
- Product Code: CC256023
- Availability: In Stock
Available Options
2025 TREK MADONE SL 7 GEN 8 SPECIFICATION
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle BB Standard: T47, Threaded Hanger Standard: UDH Tire Clearance: 32c Colors: Dark Star; Matte Lunar Silver |
|---|---|
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Stem | Size: XS, Trek RCS Pro, -7 degree, 80mm length; Size: S, M, Trek RCS Pro, -7 degree, 90mm length; Size: ML, L, Trek RCS Pro, -7 degree, 100mm length; Size: XL, Trek RCS Pro, -7 degree, 110mm length |
| Handlebar | Size: XS, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 35cm control width, 38cm drop width; Size: S, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 37cm control width, 40cm drop width; Size: M, ML, L, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 42cm width; Size: XL, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 41cm control width, 44cm drop width |
| Saddle | Size: XS, S, Bontrager Aeolus Elite, austenite rails, 155mm width; Size: M, ML, L, XL, Bontrager Aeolus Elite, austenite rails, 145mm width |
| Seatpost | Size: XS, S, M, XL, Madone aero carbon seatpost, 0mm offset, short length; Size: ML, L, Madone aero carbon seatpost, 0mm offset, long length Type: Rigid |
| Rear Derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| Front Derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Crank | Size: XS, S, Shimano Ultegra R8100, 50/34, 165mm length; Size: M, Shimano Ultegra R8100, 50/34, 170mm length; Size: ML, L, Shimano Ultegra R8100, 50/34, 172.5mm length; Size: XL, Shimano Ultegra R8100, 50/34, 175mm length |
| Shifters | Shimano Ultegra R8170 Di2, 12 speed |
| Cassette | Shimano Ultegra R8101, 11-34, 12 speed |
| Chain | Shimano Ultegra/XT M8100, 12 speed |
| Brakes | Shimano CL800, centerlock, 160mm Type: Shimano Hydraulic Disc |
| Rims | Front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle |
| Tires | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28mm |
| Disc Rotors | Shimano CL800, centerlock, 160mm |
