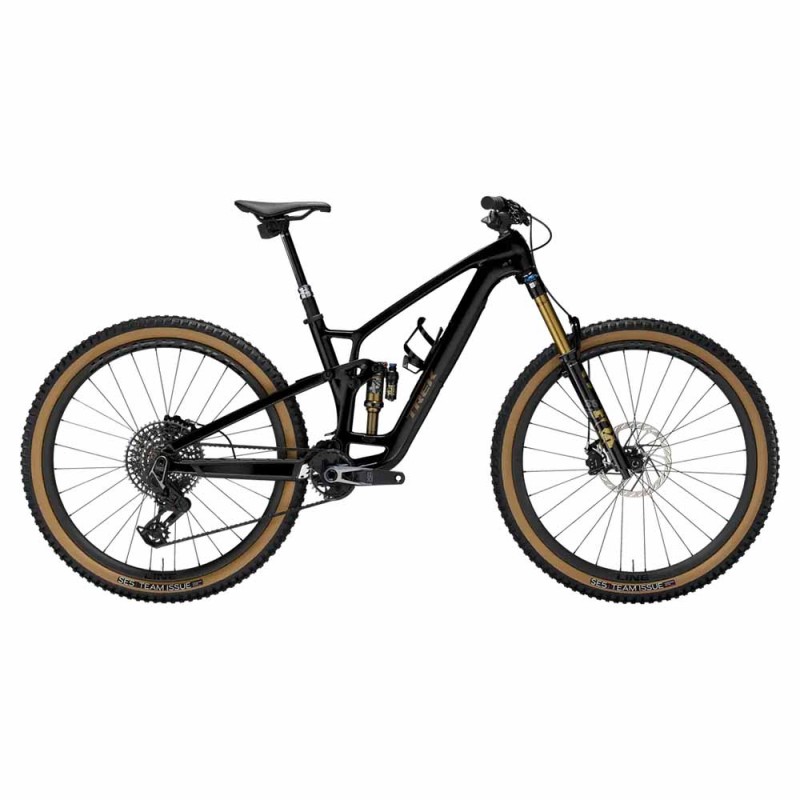

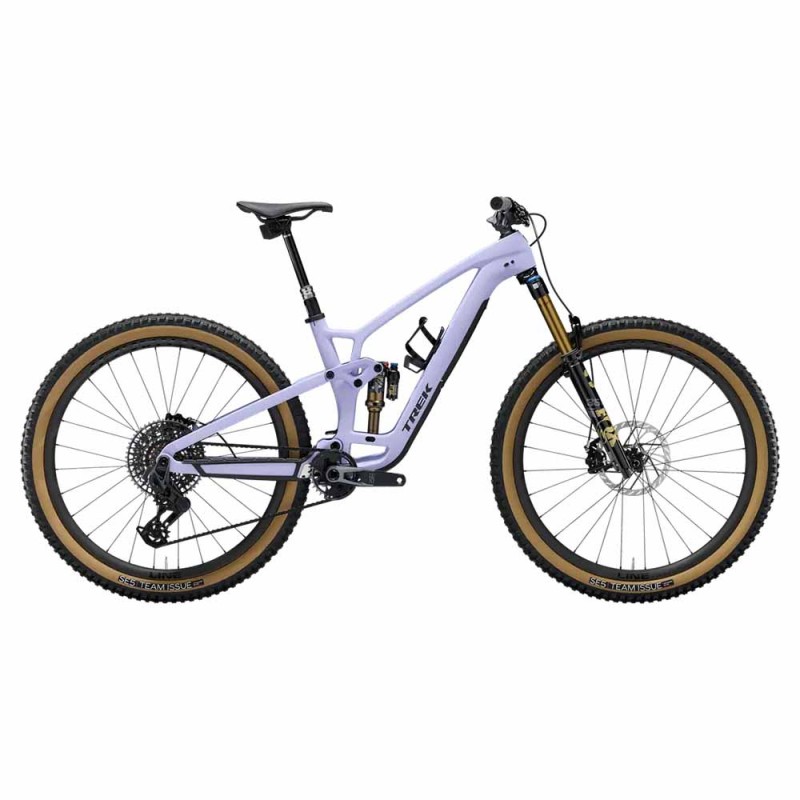

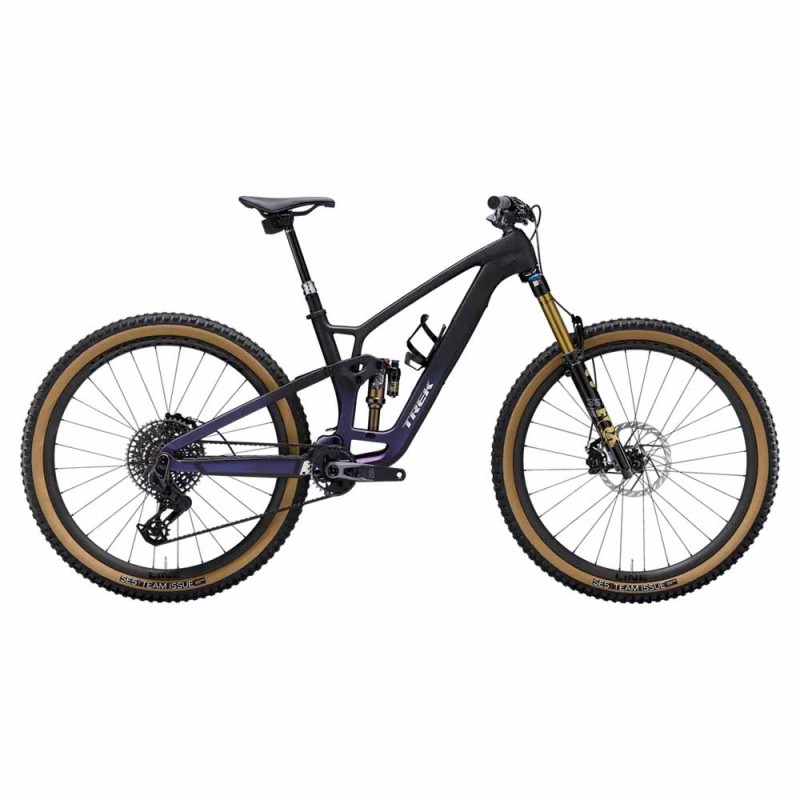

2025 Trek Fuel EX 9.9 X0 AXS T-Type Gen 6 Mountain Bike
4,900.00 USD 8,800.00 USD
- Brand: Trek
- Product Code: CC256018
- Availability: In Stock
Available Options
2025 TREK FUEL EX 9.9 X0 AXS T-TYPE GEN 6 SPECIFICATION
| Frame |
OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.6" Colors: Deep Smoke; Deep Smoke / Purple Flip; Lavender Haze; Lava |
|---|---|
| Fork |
Size: XS, S, Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 180mm direct mount brake tab, 140mm travel; Size: M, ML, L, XL, Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 180mm direct mount brake tab, 150mm travel Travel: 150mm Spring Type: Air |
| Shock |
Fox Factory Float X, 2-position damper, 185mm x 55mm
Travel: 140mm |
| Bottom Bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Headset | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Stem | Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| Saddle | Verse Short Pro, carbon rails, 145mm width |
| Seatpost |
Size: XS, S, RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length; Size: M, ML, RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length; Size: L, XL, RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length Type: Dropper |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Crank | SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12 speed |
| Chain | SRAM X0 Eagle, T-Type, 12 speed |
| Brakes |
SRAM Maven Silver 4-piston hydraulic disc
Type: SRAM Maven Silver Hydraulic Disc |
| Rims |
Front: Size: XS, S, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5"; Size: M, ML, L, XL, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29", Rear: Size: XS, S, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5"; Size: M, ML, L, XL, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29" |
| Tires |
Size: XS, S, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50"; Size: XS, S, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 27.5x2.50"; Size: M, ML, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"; Size: M, ML, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50" |
| Disc Rotors |
Size: XS, S, M, ML, L, XL, SRAM HS2, 6-bolt, 180mm; Size: M, ML, L, XL, SRAM HS2, 6-bolt, 200mm |
