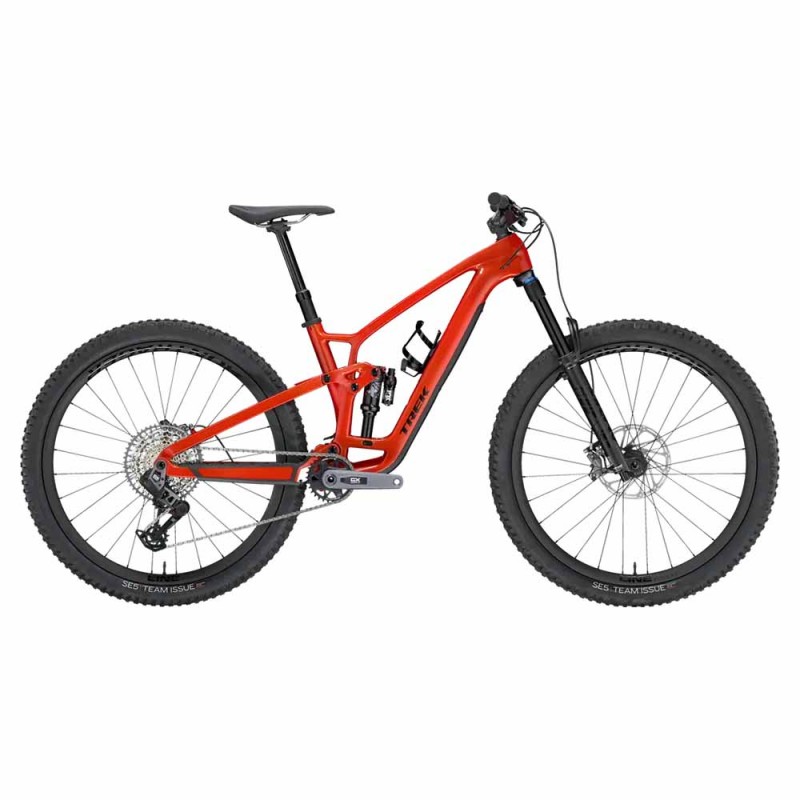

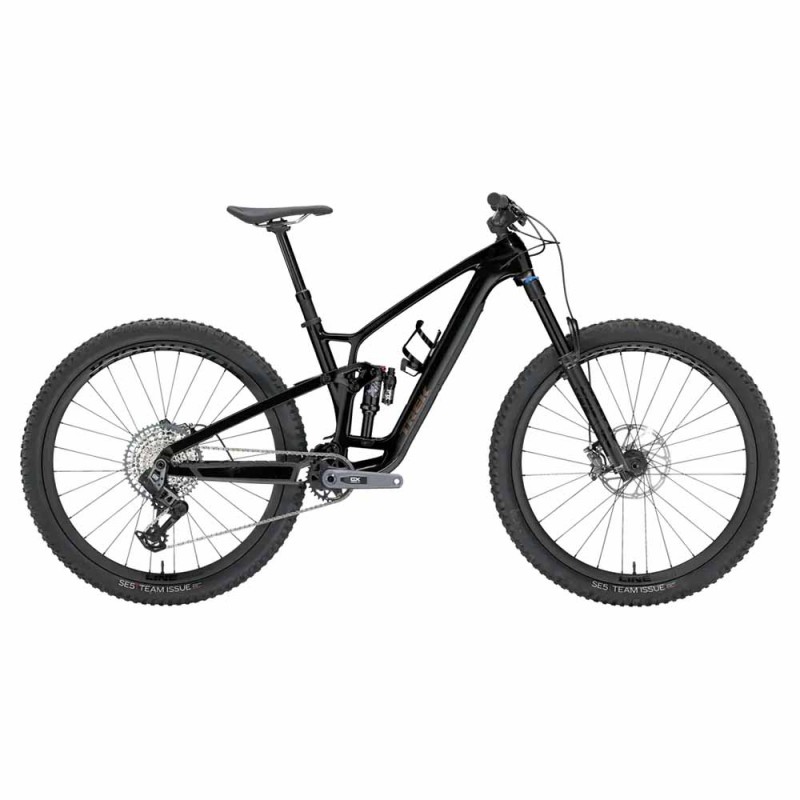

2025 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 Mountain Bike
4,000.00 USD 7,200.00 USD
- Brand: Trek
- Product Code: CC256016
- Availability: In Stock
Available Options
2025 TREK FUEL EX 9.8 GX AXS T-TYPE GEN 6 SPECIFICATION
| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.5" Colors: Deep Smoke; Lava |
|---|---|
| Fork | Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
Travel: 150mm Spring Type: Air |
| Shock | Fox Performance Float X, 2-position damper, 185mm x 55mm
Travel: 140mm |
| Bottom Bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Headset | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Saddle | Size: XS, S, M, ML, L, XL, Bontrager Arvada, austenite rails, 138mm width; Size: XS, S, M, ML, L, XL, Verse Short Comp, steel rails, 145mm width |
| Seatpost | Size: XS, S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: XS, S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length; Size: M, ML, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: M, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length; Size: ML, L, XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length Type: Dropper |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Rear Derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length |
| Shifters | SRAM AXS POD |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12 speed |
| Chain | SRAM GX Eagle, T-Type, 12 speed |
| Brakes | SRAM CODE Bronze 4-piston hydraulic disc
Type: SRAM Hydraulic Disc |
| Rims | Bontrager Line Elite 30, Tubeless Ready |
| Front Hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Tires | Size: XS, S, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50"; Size: S, M, ML, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" |
| Disc Rotors | Size: XS, S, M, ML, L, XL, SRAM CenterLine, 6-bolt, round edge, 180mm; Size: M, ML, L, XL, SRAM CenterLine, 6-bolt, round edge, 200mm |
