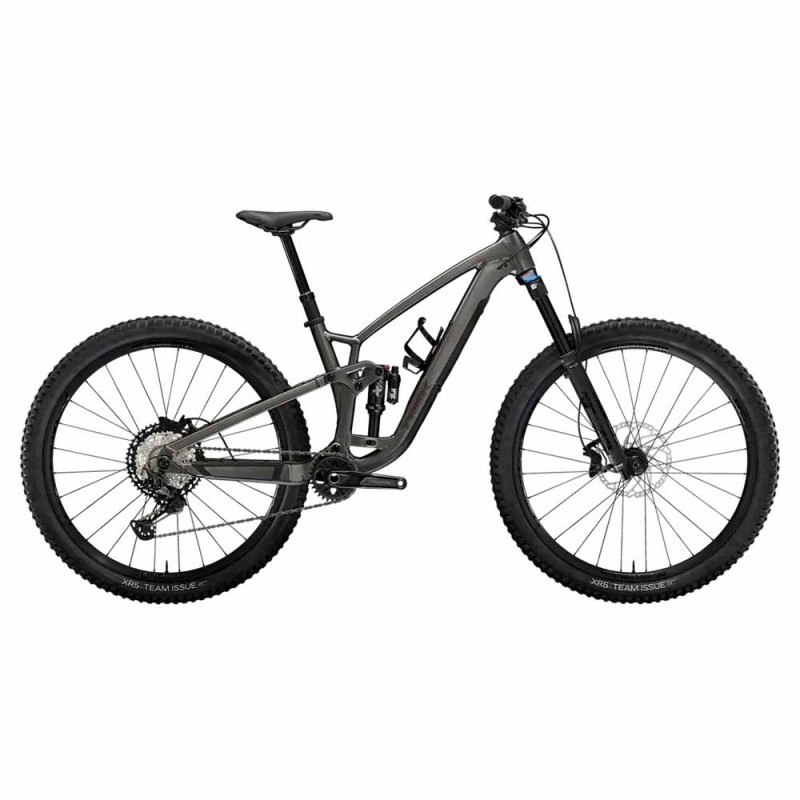

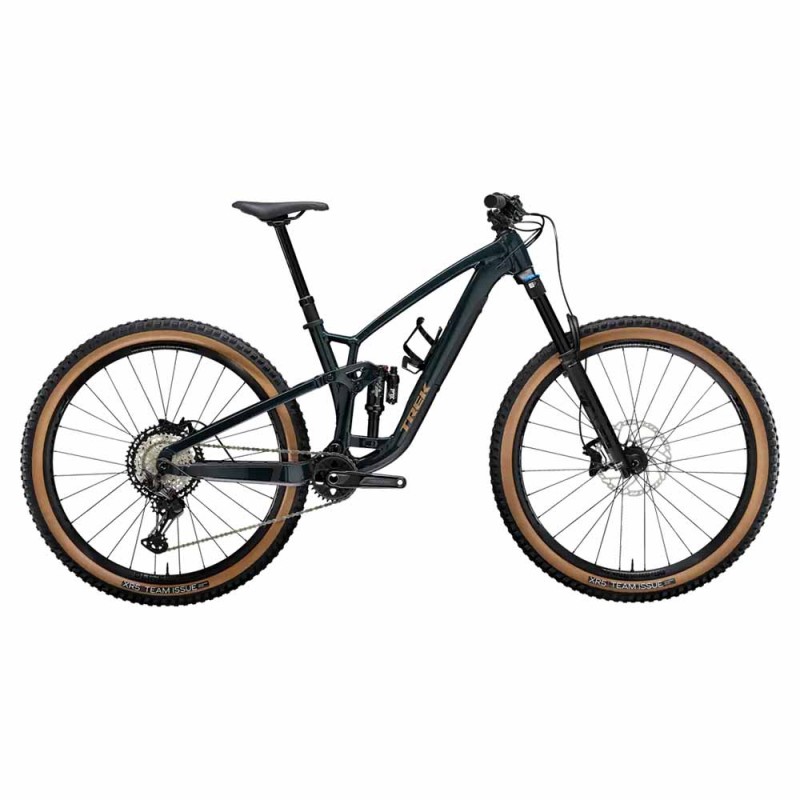

2025 Trek Fuel EX 8 XT Gen 6 Mountain Bike
2,600.00 USD 4,700.00 USD
- Brand: Trek
- Product Code: CC256015
- Availability: In Stock
Available Options
2025 TREK FUEL EX 8 XT GEN 6 SPECIFICATION
| Frame |
Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.5" Colors: Nautical Navy; Satin Mercury |
|---|---|
| Fork |
Size: XS, S, Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel; Size: S, M, ML, L, XL, XXL, Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel Travel: 150mm Spring Type: Air |
| Shock |
Fox Performance Float X, 2-position damper, 185mm x 55mm
Travel: 140mm |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Stem | Size: XS, S, Bontrager Elite, 35mm, 0 degree, 35mm length; Size: M, ML, L, XL, XXL, Bontrager Elite, 35mm, 0 degree, 45mm length |
| Handlebar | Size: XS, S, Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width; Size: M, ML, L, XL, XXL, Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
| Saddle | Bontrager Verse P3, chromoly rails |
| Seatpost |
Size: XS, S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length; Size: M, ML, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length; Size: L, XL, XXL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Type: Dropper |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Rear Derailleur | Shimano XT M8100, long cage |
| Crank | Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length |
| Shifters | Shimano XT M8100, 12 speed |
| Cassette | Shimano XT M8100, 10-51, 12 speed |
| Chain | Shimano SLX M7100, 12 speed |
| Brakes |
Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
Type: Shimano Deore Hydraulic Disc |
| Rims |
Front: Size: XS, S, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5"; Size: S, M, ML, L, XL, XXL, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29", Rear: Size: XS, S, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle, 27.5"; Size: S, M, ML, L, XL, XXL, Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29'' |
| Tires |
Size: XS, S, Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50"; Size: S, M, ML, L, XL, XXL, Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
| Disc Rotors |
Size: XS, S, M, ML, L, XL, XXL, Shimano RT66, 6-bolt, 180mm; Size: XS, S, M, ML, L, XL, XXL, Shimano RT66, 6-bolt, 203mm |
