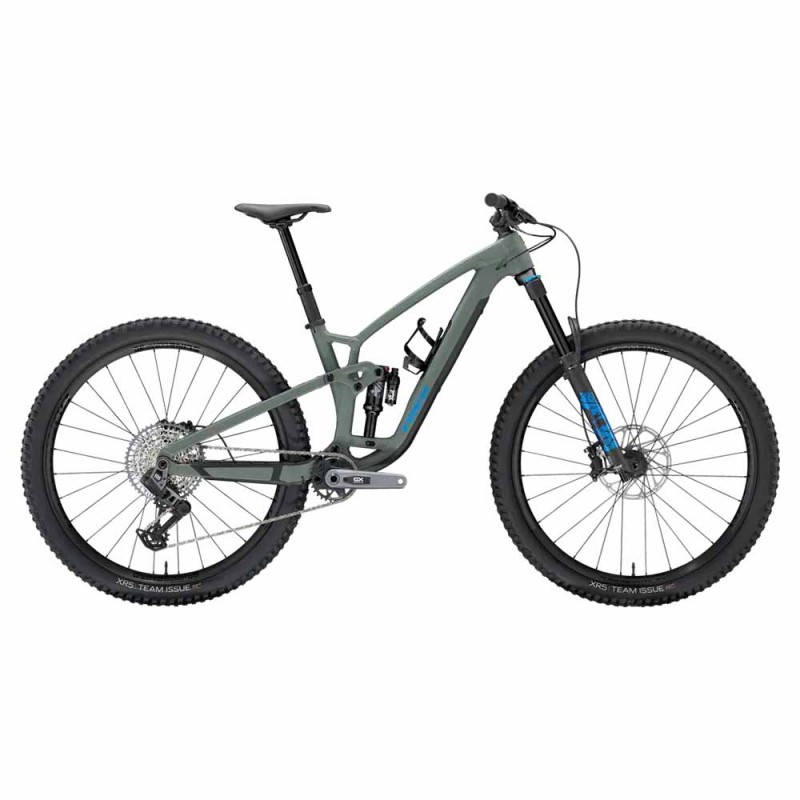

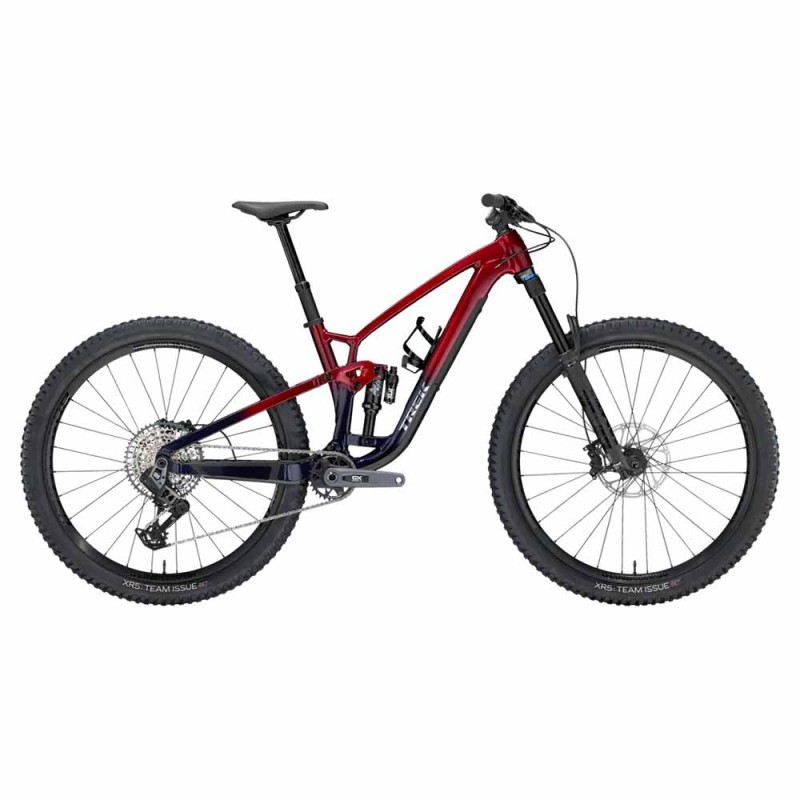

2025 Trek Fuel EX 8 GX AXS T-Type Gen 6 Mountain Bike
USD 2,800.00 USD 5,000.00
- Brand: Trek
- Product Code: CC256014
- Availability: In Stock
Available Options
2025 TREK FUEL EX 8 GX AXS T-TYPE GEN 6 SPECIFICATION
| Frame |
Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.5" Colors: Rage Red; Matte Keswick |
|---|---|
| Fork |
Size: XS, S, Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel; Size: S, M, ML, L, XL, XXL, Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel Travel: 150mm Spring Type: Air |
| Shock |
Fox Performance Float X, 2-position damper, 185mm x 55mm Travel: 140mm |
| Bottom Bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Headset | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Stem |
Size: XS, S, Bontrager Elite, 35mm, 0 degree, 35mm length; Size: M, ML, L, XL, XXL, Bontrager Elite, 35mm, 0 degree, 45mm length |
| Handlebar |
Size: XS, S, Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width; Size: M, ML, L, XL, XXL, Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
| Saddle | Bontrager Verse P3, chromoly rails |
| Seatpost |
Size: XS, S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length; Size: M, ML, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length; Size: L, XL, XXL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length Type: Dropper |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Rear Derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length |
| Shifters | SRAM AXS POD |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12 speed |
| Chain | SRAM GX Eagle, T-Type, 12 speed |
| Brakes |
SRAM DB 8 4-piston hydraulic disc Type: SRAM DB8 Hydraulic Disc |
| Rims |
Front: Size: XS, S, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5"; Size: S, M, ML, L, XL, XXL, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29", Rear: Size: XS, S, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5"; Size: S, M, ML, L, XL, XXL, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29" |
| Tires |
Size: XS, S, Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50"; Size: S, M, ML, L, XL, XXL, Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
| Disc Rotors |
Size: XS, S, M, ML, L, XL, XXL, SRAM CenterLine, 6-bolt, round edge, 180mm; Size: XS, S, M, ML, L, XL, XXL, SRAM CenterLine, 6-bolt, round edge, 200mm |
