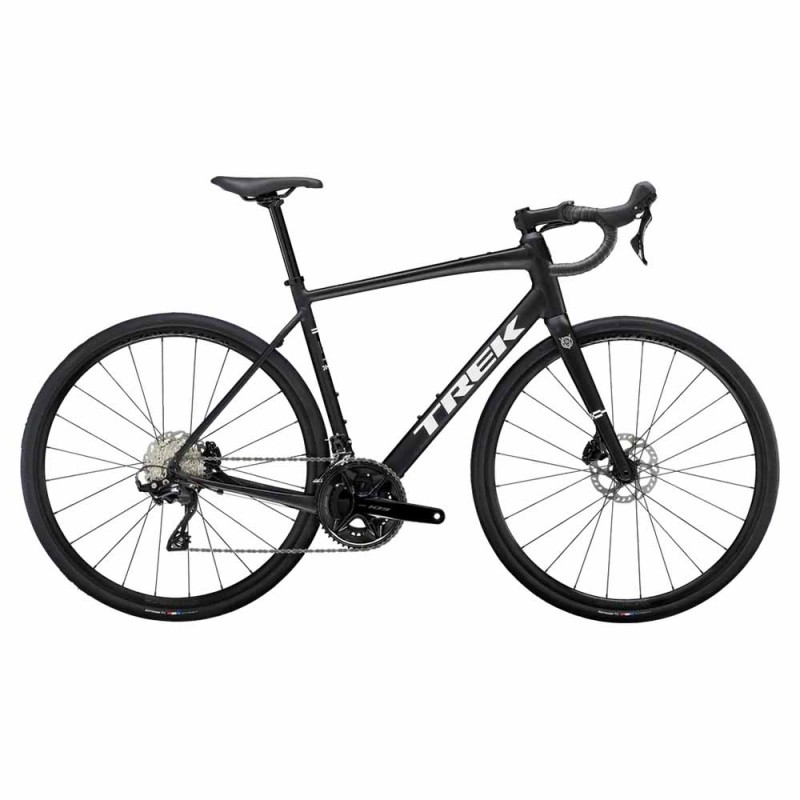

2025 Trek Domane AL 5 Gen 4 Road Bike

USD 1,250.00 USD 2,200.00

  • Brand: Trek
  • Product Code: CC256003
  • Availability: In Stock

Available Options

2025 TREK DOMANE AL 5 GEN 4 SPECIFICATION

Frame 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
BB Standard: BSA, 68mm, Threaded
Hanger Standard: UDH
Colors: Matte Trek Black; Lichen Green
Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Bottom Bracket Size: 49, 52, 54, 56, 58, 61, Shimano RS501 BSA;
Size: 49, 52, 54, 56, 58, 61, Shimano RS500, 68mm, threaded external
Stem Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length;
Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length;
Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length;
Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar Size: 49, 52, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width;
Size: 49, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width;
Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width;
Size: 54, 56, 58, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width;
Size: 54, 56, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width;
Size: 58, 61, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width;
Size: 61, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Saddle Verse Short, steel rails, 145mm width
Seatpost Size: 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length;
Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Type: Rigid
Rear Derailleur Shimano 105 R7100, 36T max cog
Front Derailleur Shimano 105 R7100, 31.8mm clamp, down swing
Crank Size: 49, 52, Shimano 105 R7100, 50/34, 170mm length;
Size: 54, 56, Shimano 105 R7100, 50/34, 172.5mm length;
Size: 58, 61, Shimano 105 R7100, 50/34, 175mm length
Shifters Shimano 105 R7120, 12 speed
Cassette Shimano 105 7101, 11-34, 12 speed
Chain Shimano SLX M7100, 12 speed
Brakes Shimano 105 hydraulic disc, flat mount
Type: Shimano 105 Hydraulic Disc
Rims Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes 14g stainless steel, black
Front Hub Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Rear Hub Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Tires Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Disc Rotors Shimano RT70, centerlock, 160mm
