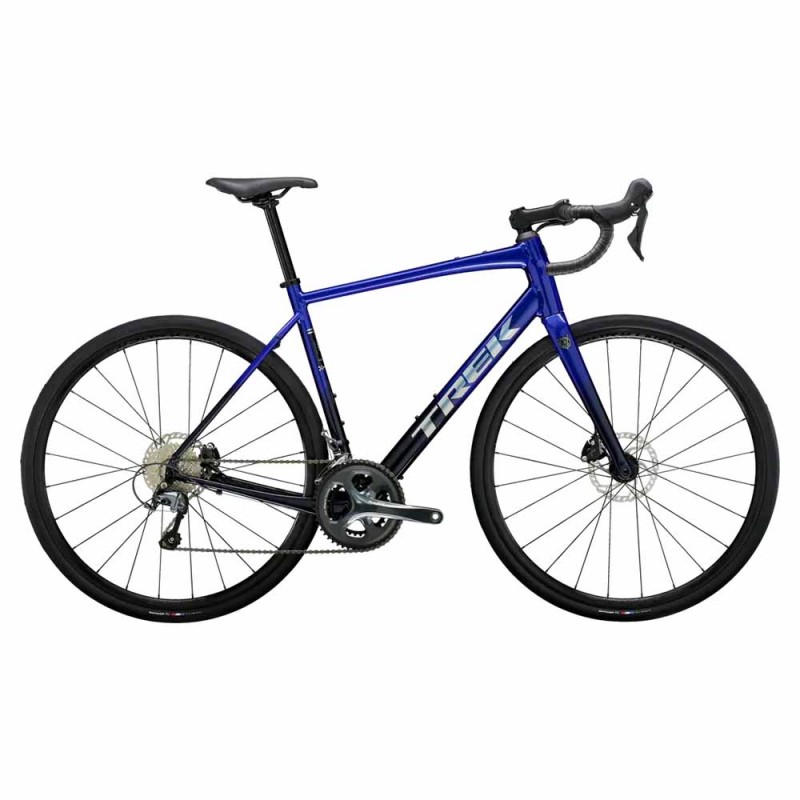

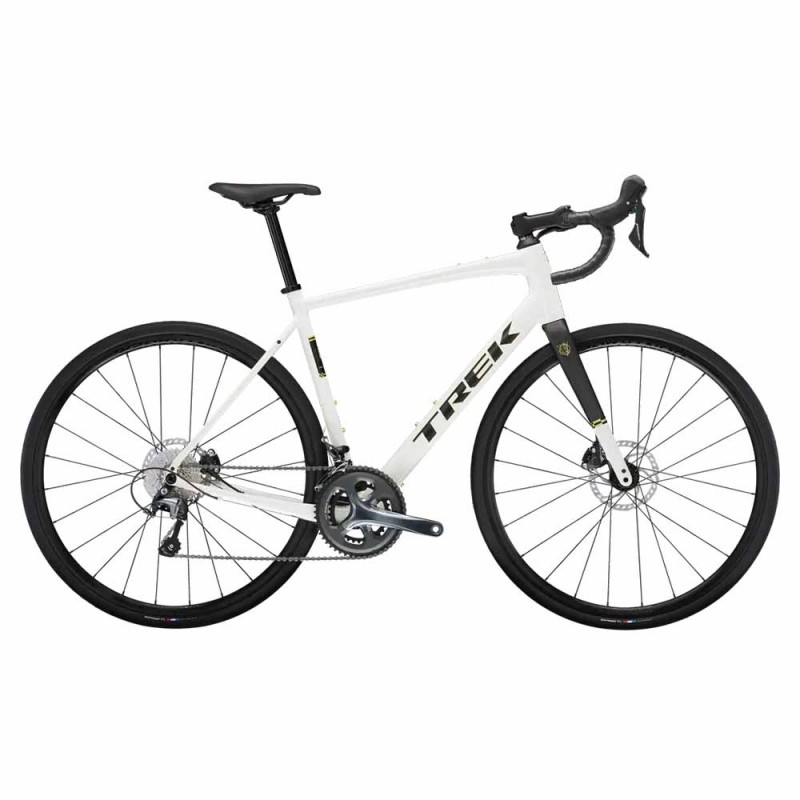

2025 Trek Domane AL 4 Gen 4 Road Bike

USD 1,050.00 USD 1,900.00

  • Brand: Trek
  • Product Code: CC256002
  • Availability: In Stock

Available Options

2025 TREK DOMANE AL 4 GEN 4 SPECIFICATION

Frame 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
BB Standard: BSA, 68mm, Threaded
Hanger Standard: UDH
Colors: Hex Blue to Marianas Blue Fade; Era White
Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Bottom Bracket Shimano RS501 BSA
Stem Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length;
Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length;
Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length;
Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length;
Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar Size: 44, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width;
Size: 44, 49, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width;
Size: 49, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width;
Size: 52, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width;
Size: 52, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width;
Size: 54, 56, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width;
Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width;
Size: 58, 61, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width;
Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Saddle Verse Short, steel rails, 145mm width
Seatpost Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length;
Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Type: Rigid
Rear Derailleur Shimano Tiagra 4700, long cage, 34T max cog
Front Derailleur Shimano Tiagra 4700, 31.8mm clamp
Crank Size: 44, Shimano Tiagra 4700, 50/34, 165mm length;
Size: 49, 52, Shimano Tiagra 4700, 50/34, 170mm length;
Size: 54, 56, Shimano Tiagra 4700, 50/34, 172.5mm length;
Size: 58, 61, Shimano Tiagra 4700, 50/34, 175mm length
Shifters Shimano Tiagra R4720, 10 speed
Cassette Shimano HG500, 11-32, 10 speed
Chain Shimano Tiagra HG54, 10 speed
Brakes Shimano Tiagra hydraulic disc, flat mount
Type: Shimano Tiagra Hydraulic Disc
Rims Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes 14g stainless steel, black
Front Hub Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Rear Hub Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Tires Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Disc Rotors Shimano RT66, 6-bolt, 160mm
