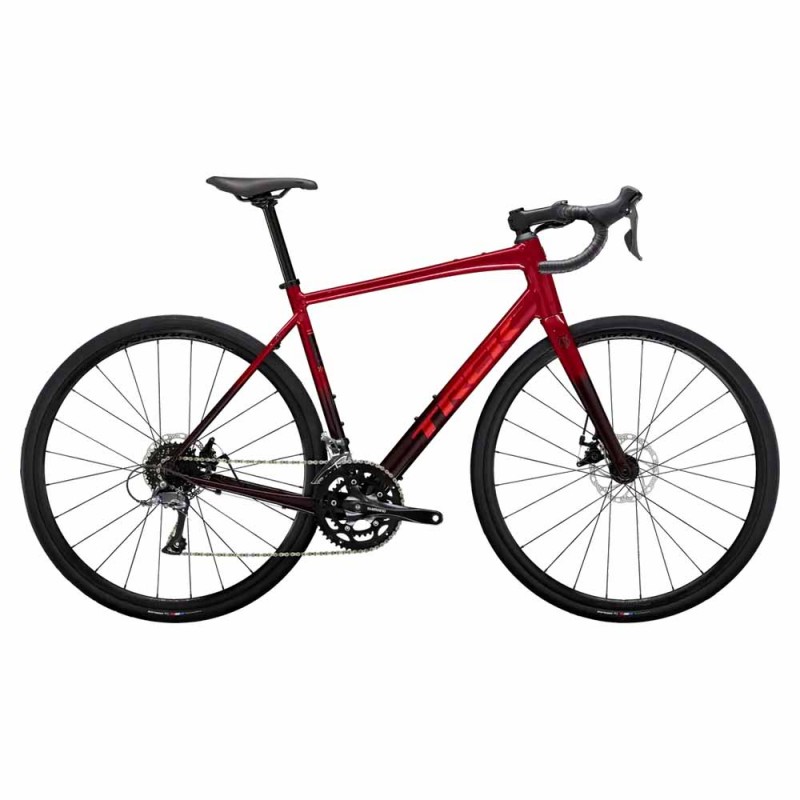

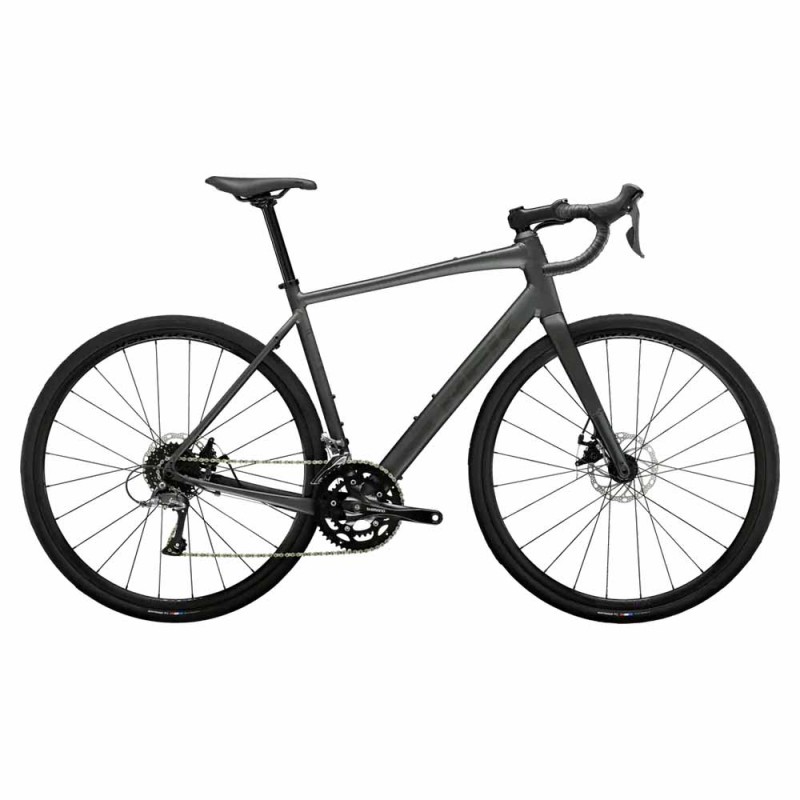

2025 Trek Domane AL 2 Gen 4 Road Bike
USD 750.00 USD 1,300.00
- Brand: Trek
- Product Code: CC256001
- Availability: In Stock
Available Options
2025 TREK DOMANE AL 2 GEN 4 SPECIFICATION
| Frame |
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle BB Standard: BSA, 68mm, Threaded Hanger Standard: UDH Colors: Matte Lithium Grey; Crimson to Dark Carmine Fade |
|---|---|
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Bottom Bracket | Shimano UN30, 68mm, threaded cartridge, 110mm spindle |
| Stem |
Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
| Handlebar |
Size: 44, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width; Size: 44, 49, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width; Size: 49, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width; Size: 52, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width; Size: 52, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width; Size: 54, 56, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 61, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width; Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width |
| Saddle | Verse Short, steel rails, 145mm width |
| Seatpost |
Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length Type: Rigid |
| Rear Derailleur | Shimano Claris RD-R2000, long cage, 34T max cog |
| Front Derailleur | Shimano Claris R2000, FD-R2000, 8-speed, 31.8mm clamp |
| Crank |
Size: 44, Shimano RS200, 50/34 (compact), 165mm length; Size: 49, 52, 54, Shimano RS200, 50/34 (compact), 170mm length; Size: 56, 58, 61, Shimano RS200, 50/34 (compact), 175mm length |
| Shifters |
Size: 44, 49, 52, 54, 56, 58, 61, Shimano Claris ST-R2000-R, 8 speed, right; Size: 44, 49, 52, 54, 56, 58, 61, Shimano Claris ST-R2000-L, 8 speed, left |
| Cassette | Shimano HG31, 11-32, 8 speed |
| Chain | Shimano Sora HG71, 8 speed |
| Brakes |
Tektro C550 mechanical disc brake, dual piston, flat mount Type: Tektro Mechanical Disc |
| Rims | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve |
| Spokes | 14g stainless steel, black |
| Front Hub | Formula RX-512 alloy, 6-bolt, 100x12mm thru axle |
| Rear Hub | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle |
| Tires | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm |
| Disc Rotors | Tektro wave, 6-bolt, 160mm |
