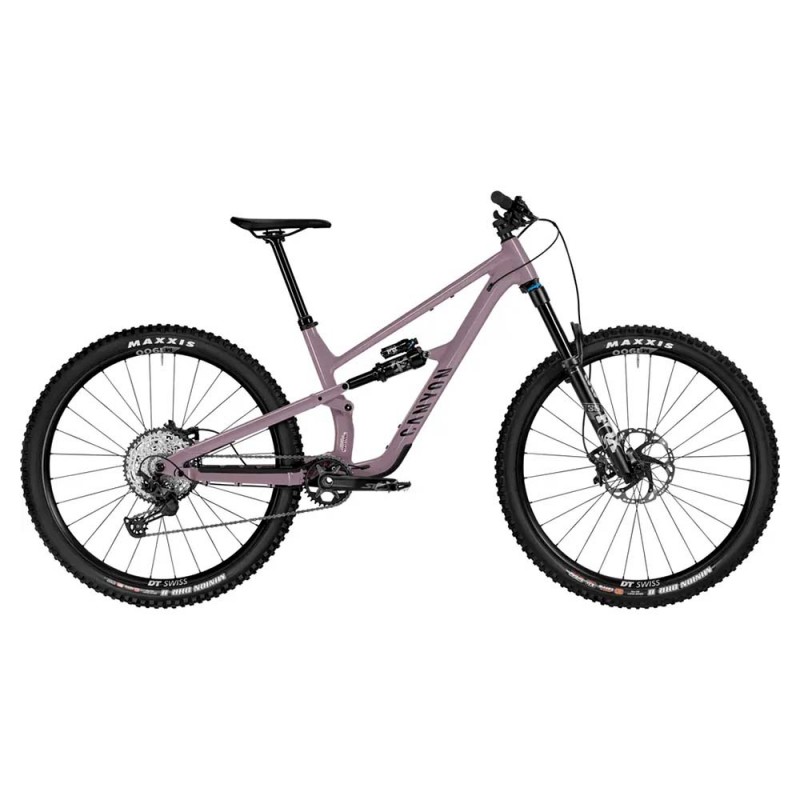

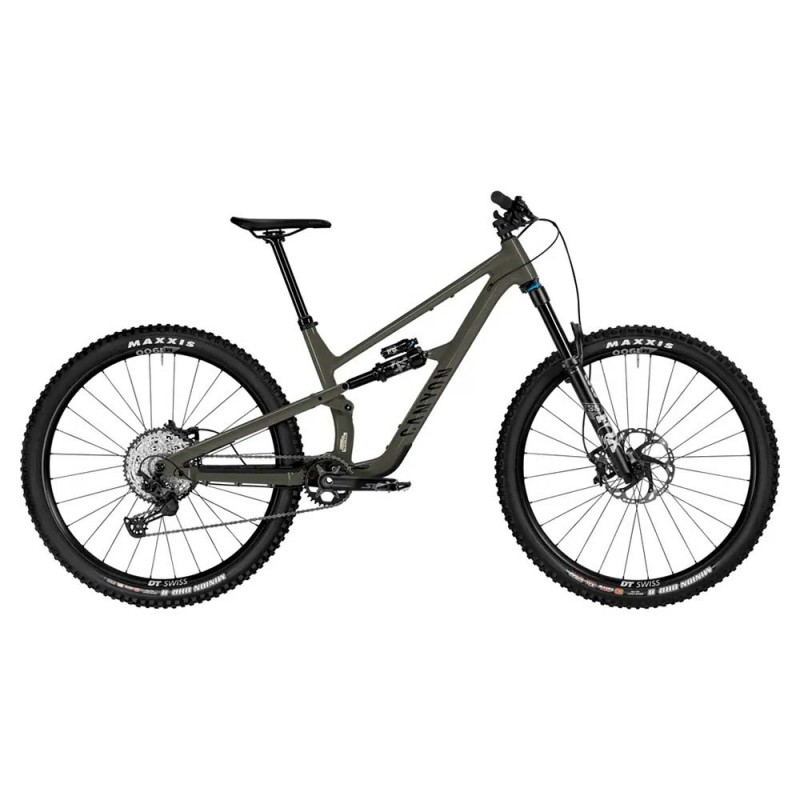

2025 Canyon Spectral 6 Mountain Bike
USD 1,700.00 USD 3,000.00
- Brand: Canyon
- Product Code: CC251010
- Availability: In Stock
Available Options
2025 CANYON SPECTRAL 6 SPECIFICATION
| Frame | Canyon Spectral, Material: Aluminium (AL), Weight: 6.94 lbs BB Standard: BSA, 68mm, Threaded Colors: Haze; Element |
|---|---|
| Fork | FOX 36 Performance Elite, Axle dimension: 15x110 mm, Stanchion Diameter: 36 mm, Travel: 150 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 4.19 lbs Travel: 150mm Spring Type: Air |
| Shock | FOX Float X Performance, Weight: 1.19 lbs Travel: 140mm |
| Bottom Bracket | Token TK878EX, Bottom bracket standard: BSA 68/73, Weight: 0.22 lbs |
| Stem | Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar | Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle | Ergon SM10 Enduro, Developed on the Enduro World Series, the SM10 gives you max freedom of movement in technical terrain., On certain models, this saddle may be substituted for an alternate, equivalent Selle San Marco model., Potentially affected models include:, Spectral 6 27 (Model #3184), Spectral 6 29 (Model #3185) |
| Seatpost | Canyon SP0081, Clamp diameter: 34,9 mm, Material: Aluminium (AL), Weight: 1.54 lbs Type: Dropper |
| Pedals | None included |
| Grips | Canyon G5 |
| Rims | DT Swiss M1900, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 2.12 lbs | DT Swiss XM1900, Rotor mount: IS 6-bolt, Weight: 2.25 lbs |
| Tires | Maxxis Minion DHR II Exo, Width: 2,4", Weight: 2.28 lbs | Maxxis Minion DHR II Exo+, Width: 2.4", Weight: 2.21 lbs |
| Disc Rotors | Shimano RT86, Size: 203 mm |
| Rear Derailleur | Shimano Deore SLX M7100, Cage length: long, Weight: 0.63 lbs |
| Crank | Shimano Deore SLX M7120, Number of chainrings: 1 |
| Shifters | Shimano Deore SLX M7100, Weight: 0.32 lbs |
| Cassette | Shimano Deore SLX CS-M7100, Number of sprockets: 12, Range: 10-51 |
| Chain | Shimano Deore M6100 |
| Brakes | Shimano Deore SLX M7120 Type: Shimano SLX Hydraulic Disc |
